Spark on YARN 설치 방법
- Authors
- Name
Overview
Spark는 데이터 입출력을 디스크가 아닌, 메모리에서 하기 때문에 중간중간의 결과를 HDFS 상에 저장할 필요가 없다. 따라서 I/O 에서 큰 시간절약을 할 수 있고 이는 최대 100배 정도 빠르다고 홍보한다. spark3.3.1-cluster-overview

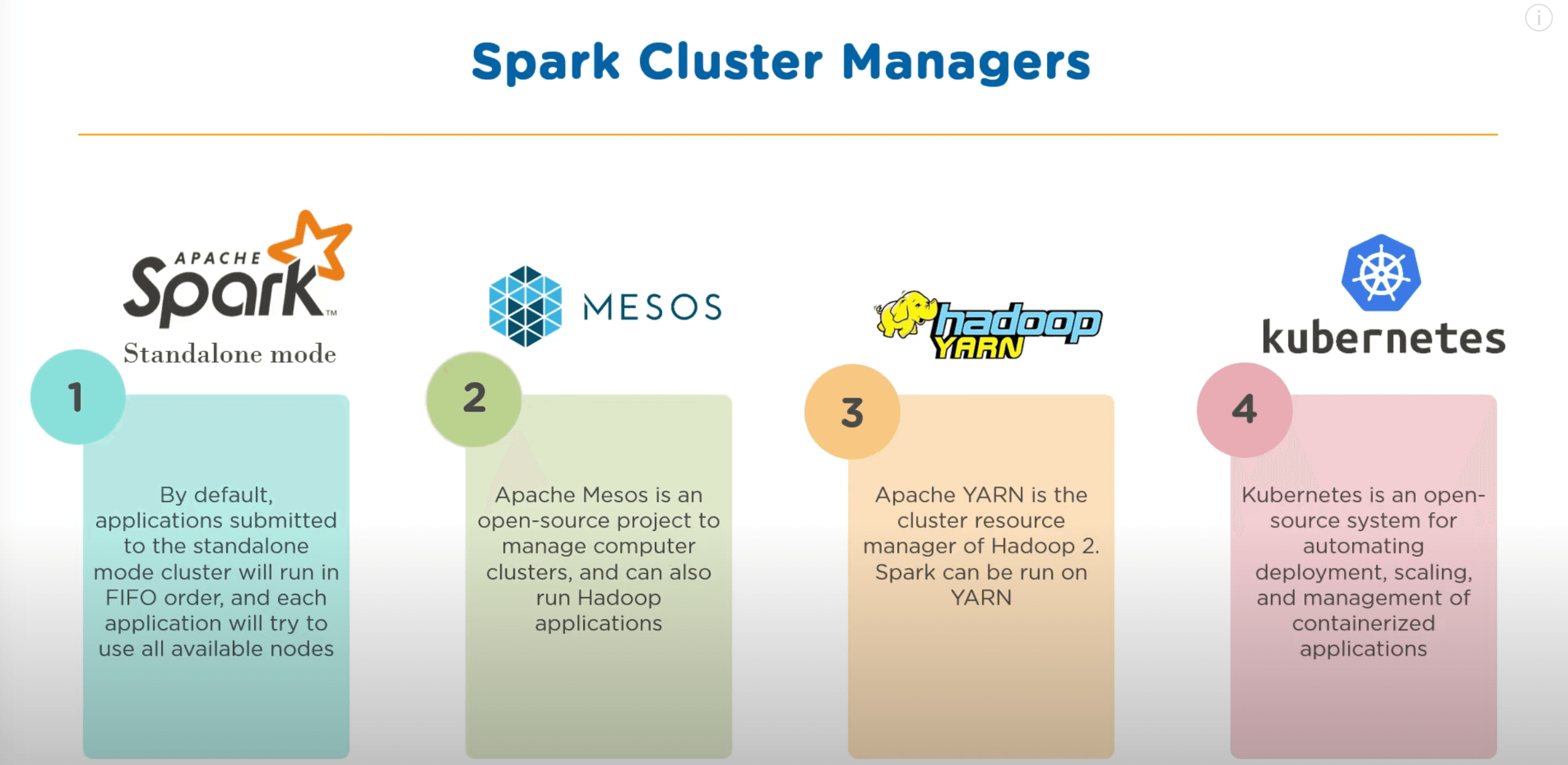

Spark는 아래 4가지의 Cluster Manager TYPE을 제공한다.
이중, 기존 Hadoop의 YARN을 활용하는 방법으로, Spark를 설치해보려한다.
- Install
- DownLoad
- Configuration 설정
- spark history server 실행
- pyspark 실행
- Hive -> Mapreduce 와 SparkSQL 비교.
- Hive (mapreduce engin)
- Spark SQL
- Reference
Install
Spark Standalone으로 구동하려면, 모든 노드에 Spark를 설치해야하지만, Spark on YARN은 Clien가 되는 하나의 노드에만 설치하면 된다. 설치된 Hadoop 버젼은 3.3.4 이고, Spark version은 3.3.1이다.
DownLoad
나는 네임노드가 떠있는 node에 Spark 설치를 진행했다.
wget https://dlcdn.apache.org/spark/spark-3.3.1/spark-3.3.1-bin-hadoop3.tgz
tar -zxvf spark-3.3.1-bin-hadoop3.tgz
그리고, 적절한 위치로 해당 binary file을 옮겨준다. 필자의 경우 /usr/local/spark로 옮겨주었다.
cp -R spark-3.3.1-bin-hadoop3 /usr/local/spark
Configuration 설정
~/.bashrc
아래 내용 추가.
export SPARK_HOME=/usr/local/spark
PATH=$PATH:$SPARK_HOME/bin
환경 변수 리로드는 source ~/.bashrc
binary 파일을 다운로드 받으면 $SPARK_HOME/conf 아래에 .template 로 끝나는 파일들이 있고 이 것을 아래처럼 복사해서 설정하도록 한다.
spark-env.sh
root@ubuntu01:/usr/local/spark/conf# ls
fairscheduler.xml.template log4j2.properties.template metrics.properties.template spark-defaults.conf.template spark-env.sh.template workers.template
root@ubuntu01:/usr/local/spark/conf# cp spark-env.sh.template spark-env.sh
아래와 같이 추가해준다.
spark-env.sh
# Options read in any cluster manager using HDFS
# - HADOOP_CONF_DIR, to point Spark towards Hadoop configuration files
export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop
# Options read in YARN client/cluster mode
# - YARN_CONF_DIR, to point Spark towards YARN configuration files when you use YARN
export YARN_CONF_DIR=$HADOOP_HOME/etc/hadoop
spark-defaults.conf
spark.history.fs.logDirectory hdfs:///sparklog
spark.eventLog.dir hdfs:///sparklog
spark.eventLog.enabled true
spark.history.provider org.apache.spark.deploy.history.FsHistoryProvider
spark history server 실행
/usr/local/spark/sbin# ./start-history-server.sh

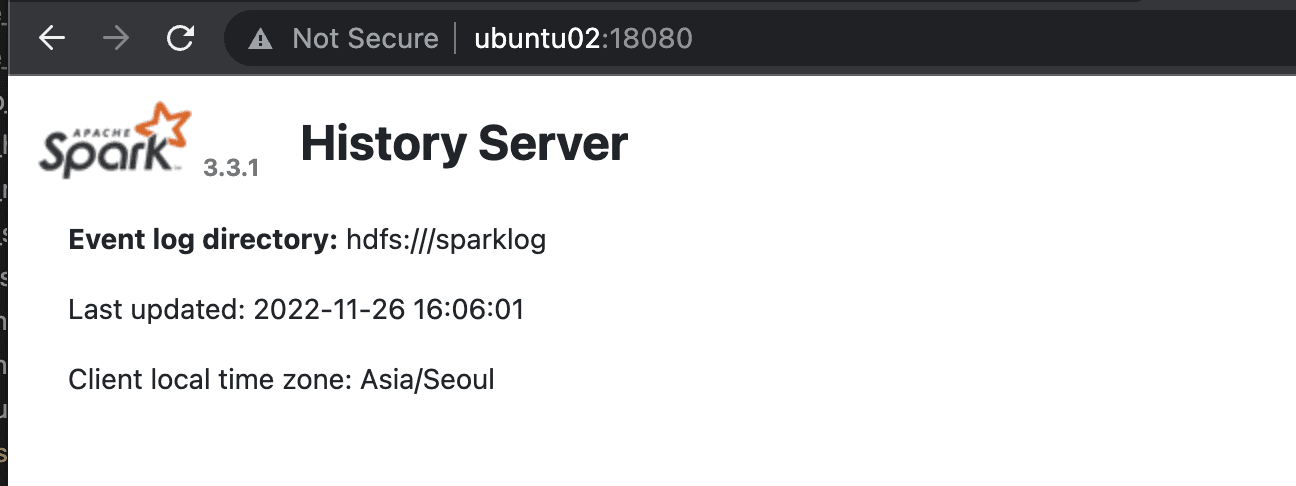

아래와 같이 18080에서 history server가 실행되고 있는지 확인하기
pyspark 실행
원주율을 구하는 아래의 예제를 실행해서 spark 가 YARN을 통해 정상적으로 실행되는지 확인한다.
spark-submit
root@ubuntu01:/usr/local/spark/examples/src/main/python# spark-submit --master yarn --deploy-mode cluster pi.py
아래와 같이 실행 결과가 남으면, 정상적으로 설치된 것으로 볼 수 있다.
22/11/26 03:09:49 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
22/11/26 03:09:50 INFO DefaultNoHARMFailoverProxyProvider: Connecting to ResourceManager at ubuntu01/192.168.219.101:8040
22/11/26 03:09:50 INFO Configuration: resource-types.xml not found
22/11/26 03:09:50 INFO ResourceUtils: Unable to find 'resource-types.xml'.
22/11/26 03:09:50 INFO Client: Verifying our application has not requested more than the maximum memory capability of the cluster (8192 MB per container)
22/11/26 03:09:50 INFO Client: Will allocate AM container, with 1408 MB memory including 384 MB overhead
22/11/26 03:09:50 INFO Client: Setting up container launch context for our AM
22/11/26 03:09:50 INFO Client: Setting up the launch environment for our AM container
22/11/26 03:09:50 INFO Client: Preparing resources for our AM container
22/11/26 03:09:50 WARN Client: Neither spark.yarn.jars nor spark.yarn.archive is set, falling back to uploading libraries under SPARK_HOME.
22/11/26 03:09:51 INFO Client: Uploading resource file:/tmp/spark-817663b0-763a-4276-9323-06d7673fef50/__spark_libs__4960795851374146516.zip -> hdfs://ubuntu01:9000/user/root/.sparkStaging/application_1669137917003_0010/__spark_libs__4960795851374146516.zip
22/11/26 03:09:54 INFO Client: Uploading resource file:/usr/local/spark/examples/src/main/python/pi.py -> hdfs://ubuntu01:9000/user/root/.sparkStaging/application_1669137917003_0010/pi.py
22/11/26 03:09:54 INFO Client: Uploading resource file:/usr/local/spark/python/lib/pyspark.zip -> hdfs://ubuntu01:9000/user/root/.sparkStaging/application_1669137917003_0010/pyspark.zip
22/11/26 03:09:54 INFO Client: Uploading resource file:/usr/local/spark/python/lib/py4j-0.10.9.5-src.zip -> hdfs://ubuntu01:9000/user/root/.sparkStaging/application_1669137917003_0010/py4j-0.10.9.5-src.zip
22/11/26 03:09:54 INFO Client: Uploading resource file:/tmp/spark-817663b0-763a-4276-9323-06d7673fef50/__spark_conf__2594025362965367855.zip -> hdfs://ubuntu01:9000/user/root/.sparkStaging/application_1669137917003_0010/__spark_conf__.zip
22/11/26 03:09:54 INFO SecurityManager: Changing view acls to: root
22/11/26 03:09:54 INFO SecurityManager: Changing modify acls to: root
22/11/26 03:09:54 INFO SecurityManager: Changing view acls groups to:
22/11/26 03:09:54 INFO SecurityManager: Changing modify acls groups to:
22/11/26 03:09:54 INFO SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users with view permissions: Set(root); groups with view permissions: Set(); users with modify permissions: Set(root); groups with modify permissions: Set()
22/11/26 03:09:54 INFO Client: Submitting application application_1669137917003_0010 to ResourceManager
22/11/26 03:09:54 INFO YarnClientImpl: Submitted application application_1669137917003_0010
22/11/26 03:09:55 INFO Client: Application report for application_1669137917003_0010 (state: ACCEPTED)
22/11/26 03:09:55 INFO Client:
client token: N/A
diagnostics: AM container is launched, waiting for AM container to Register with RM
ApplicationMaster host: N/A
ApplicationMaster RPC port: -1
queue: default
start time: 1669432194364
final status: UNDEFINED
tracking URL: http://ubuntu01:8088/proxy/application_1669137917003_0010/
user: root
22/11/26 03:09:56 INFO Client: Application report for application_1669137917003_0010 (state: ACCEPTED)
22/11/26 03:09:57 INFO Client: Application report for application_1669137917003_0010 (state: ACCEPTED)
22/11/26 03:09:58 INFO Client: Application report for application_1669137917003_0010 (state: ACCEPTED)
22/11/26 03:09:59 INFO Client: Application report for application_1669137917003_0010 (state: ACCEPTED)
22/11/26 03:10:00 INFO Client: Application report for application_1669137917003_0010 (state: RUNNING)
22/11/26 03:10:00 INFO Client:
client token: N/A
diagnostics: N/A
ApplicationMaster host: ubuntu03
ApplicationMaster RPC port: 43259
queue: default
start time: 1669432194364
final status: UNDEFINED
tracking URL: http://ubuntu01:8088/proxy/application_1669137917003_0010/
user: root
22/11/26 03:10:01 INFO Client: Application report for application_1669137917003_0010 (state: RUNNING)
22/11/26 03:10:02 INFO Client: Application report for application_1669137917003_0010 (state: RUNNING)
22/11/26 03:10:03 INFO Client: Application report for application_1669137917003_0010 (state: RUNNING)
22/11/26 03:10:04 INFO Client: Application report for application_1669137917003_0010 (state: RUNNING)
22/11/26 03:10:05 INFO Client: Application report for application_1669137917003_0010 (state: RUNNING)
22/11/26 03:10:06 INFO Client: Application report for application_1669137917003_0010 (state: RUNNING)
22/11/26 03:10:07 INFO Client: Application report for application_1669137917003_0010 (state: RUNNING)
22/11/26 03:10:08 INFO Client: Application report for application_1669137917003_0010 (state: FINISHED)
22/11/26 03:10:08 INFO Client:
client token: N/A
diagnostics: N/A
ApplicationMaster host: ubuntu03
ApplicationMaster RPC port: 43259
queue: default
start time: 1669432194364
final status: SUCCEEDED
tracking URL: http://ubuntu01:8088/proxy/application_1669137917003_0010/
user: root
22/11/26 03:10:08 INFO ShutdownHookManager: Shutdown hook called
22/11/26 03:10:08 INFO ShutdownHookManager: Deleting directory /tmp/spark-467194a9-c6c1-4708-88aa-f66d15229dd6
22/11/26 03:10:08 INFO ShutdownHookManager: Deleting directory /tmp/spark-817663b0-763a-4276-9323-06d7673fef50

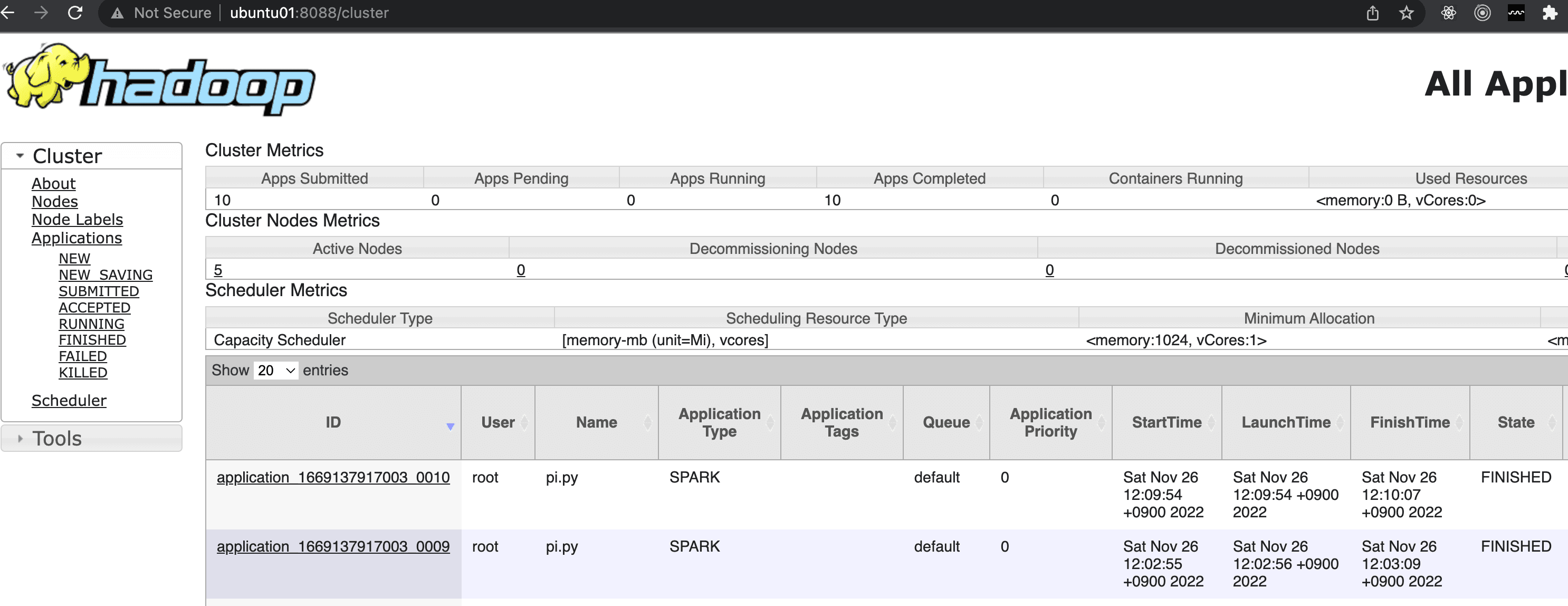

아래와 같이 이 job에 대해서는 Spark history server에서 그리고, resource manager Web UI에서도 JOB이 정상적으로 제출된 것을 확인할 수 있다.
Hive -> Mapreduce 와 SparkSQL 비교.
Hive의 경우 Query를 Mapreduce로 처리하지만, 이를 Spark로도 처리할 수 있다. https://cwiki.apache.org/confluence/display/Hive/Hive+on+Spark%3A+Getting+Started 참고. 그러나 최근에는 Hive -> Spark -> YARN 으로 사용하기 보다는, Hive를 사용하지 않고 SPARKSQL -> YARN 구조로 사용하는 것으로 보인다. Ek
movie_lens 데이터의 u_data 테이블에 select movieid, avg(rating) as avg_rating from u_data group by movieid sort by avg_rating DESC; 이 쿼리를 hive에서 실행해서, memory에서 실행되는 Spark가, HDFS를 사용하는 Mapreduce 대비 얼마나 속도가 빠른지 측정해 볼 것이다.
Hive (mapreduce engin)
Hive의 경우 33.699초가 소요되었다.
hive> select movieid, avg(rating) as avg_rating from u_data group by movieid sort by avg_rating DESC;
Time taken: 33.699 seconds, Fetched: 1682 row(s)
Spark SQL
preparatoin
Spark SQL을 사용하기 위해서는, Hive 설치 때와 마찬가지로 mysql-connector가 필요하다. mysql-connector-설치방법은 링크를 참조하여 설치한다.
그리고 나서, 이 mysql-connector-java-*.jar을 $SPARK_HOME/jars/ 하위에 넣어준다.
pyspark 실행
$SPARK_HOME/bin/pyspark를 실행한 뒤 아래의 코드를 입력해보자.
from pyspark.sql import SparkSession
import time
start = time.time()
math.factorial(100000)
spark = SparkSession \
.builder \
.appName("Python Spark SQL basic example") \
.config("spark.some.config.option", "some-value") \
.getOrCreate()
spark.sql("select movieid, avg(rating) as avg_rating from u_data group by movieid sort by avg_rating DESC").show()
end = time.time()
print(f"{end - start:.5f} sec")
실행에 오직 6초 정도가 소요되었다. 놀랍다. 기존 Mapreduce를 통해 실행되는 Hive인 33초에 비해서 굉장히 빨라졌음을 알 수 있다.
6.07104 sec
